Sculpt — sculptural keycaps for ergonomic split keyboards

Sculpt_example

Installation

Sculpt comes as a set of keycaps for self-assembly on your keyboard. All keycaps are marked with index labels on the keycap itself in the form “XY”, where X is the letter of the row (top to bottom), Y is the sequential number of the column from left to right

Sculpt

Correct keycap installation — the edge with the index label must be on top

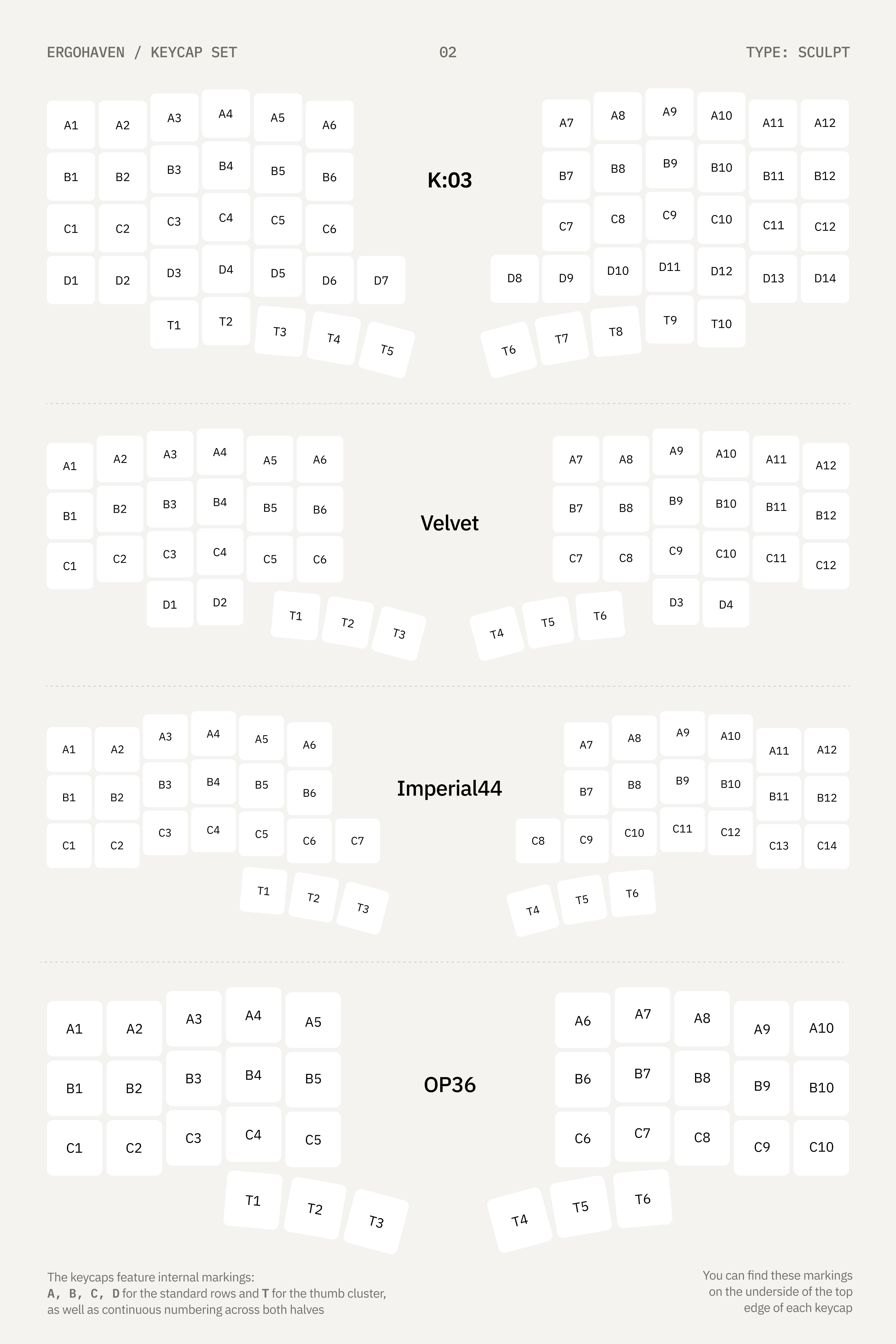

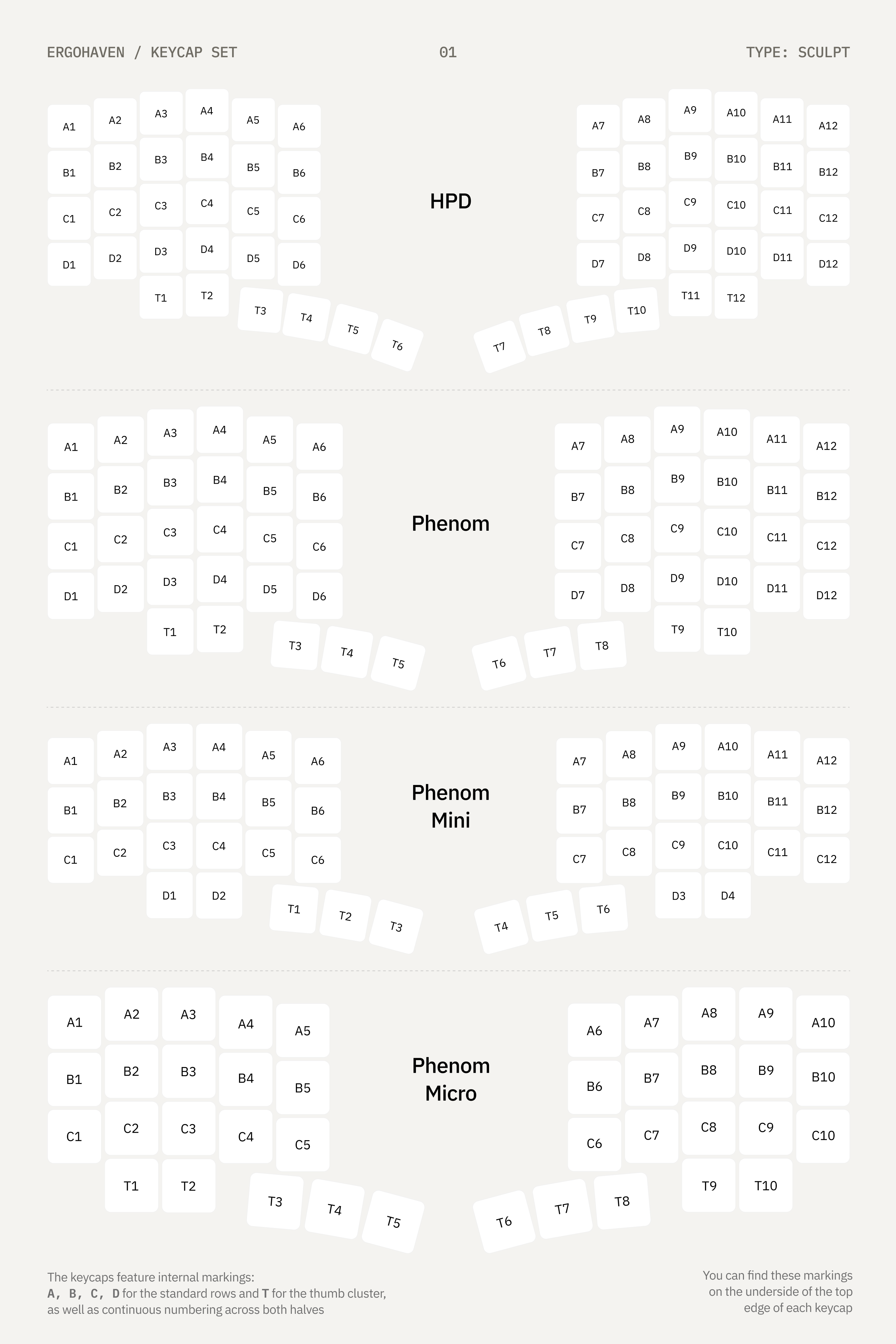

Keycap placement on the keyboard

Keycap placement on the keyboard

Keycap placement on the keyboard

Troubleshooting

Keycap does not match the geometry or height
  • Check the switch installation, the switch must be fully inserted
  • Check that the keycap index matches its correct placement on the keyboard
  • Check the keycap stem for foreign objects, such as support remnants. Clean the stem with a thin object

Sculpt

Care and maintenance

Remove the keycaps

Use a special puller to avoid scratching the sides

Make a solution

Pour warm water (up to 40°C) into a container and add a couple drops of soap or dishwashing liquid

Do not use boiling water — high temperature will deform the keycap stem, and it will no longer hold on the switch

Soak

Leave the keycaps in water for 10–15 minutes

Wipe

Use a soft toothbrush or microfiber without applying strong pressure

Rinse

Rinse the keycaps in clean running water

Dry

Place the keycaps stem-down on a towel until completely dry

Do not use aggressive cleaning agents (acetone, gasoline, solvents (646, white spirit), concentrated acids and alkalis)!
