Phenom Series

Phenom

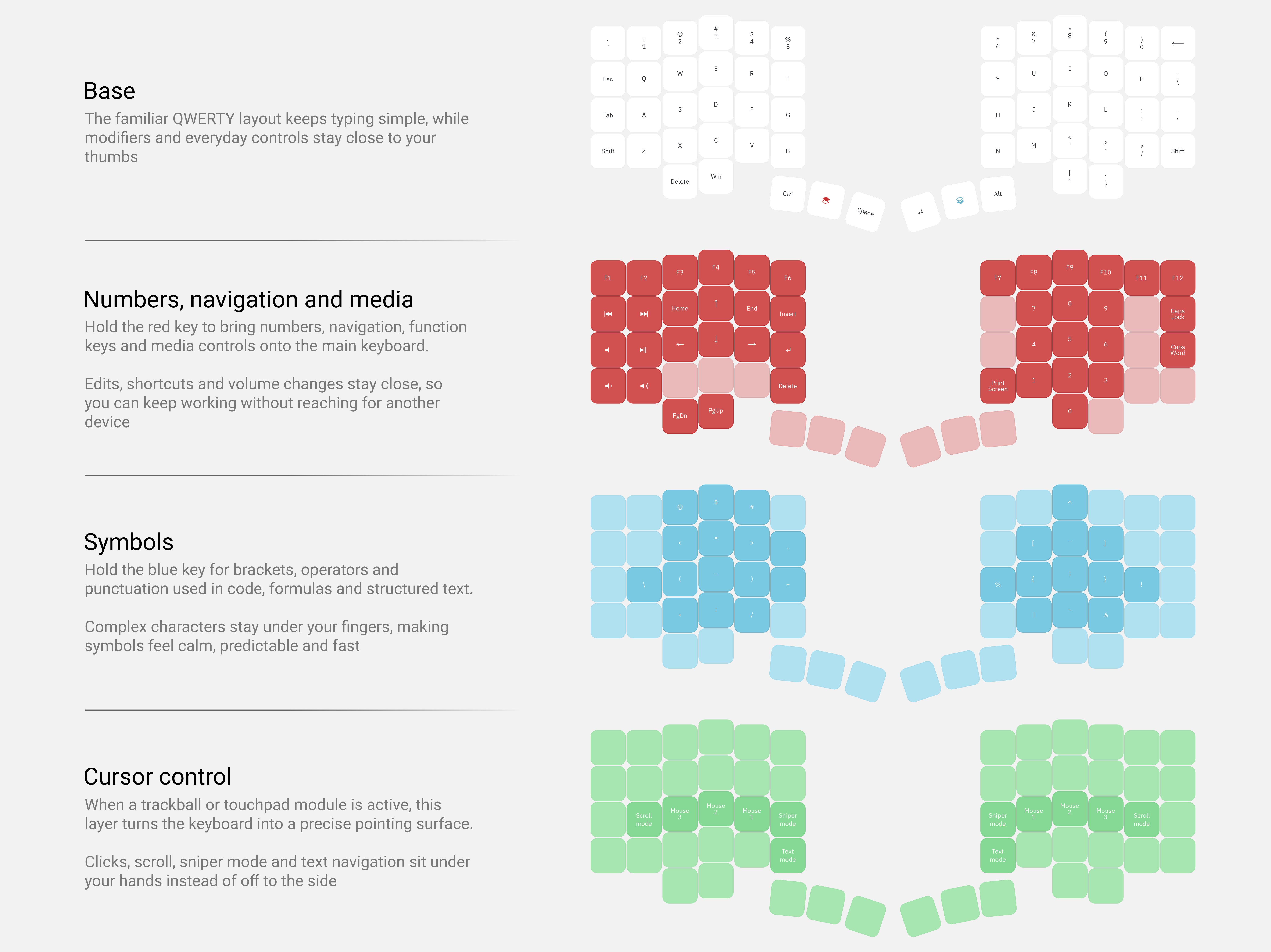

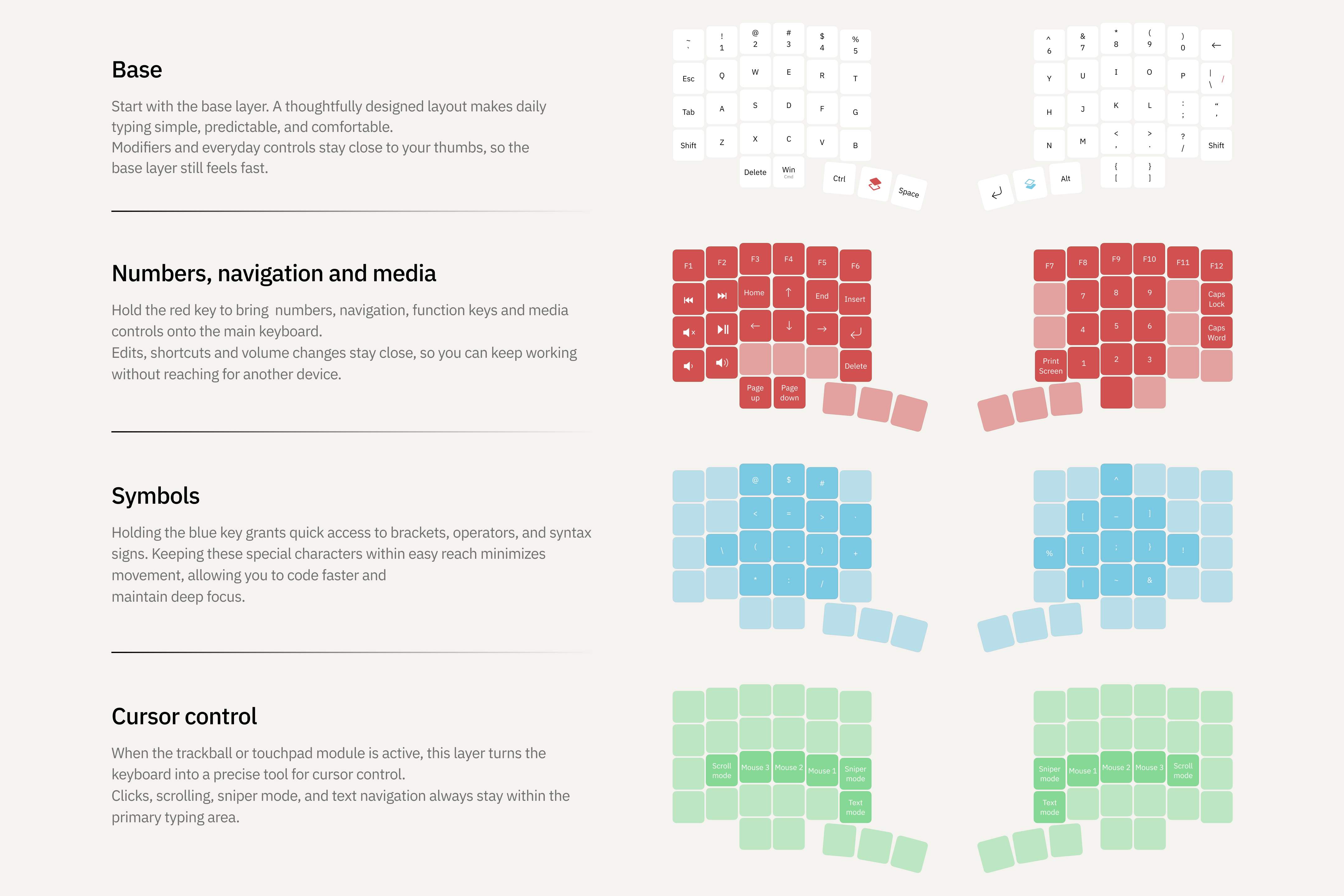

Phenom layout

Phenom is an ergonomic programmable split keyboard with a 3D case, a modular hot-swap system, 58 customizable keys, and support for a trackball, touchpad, or encoder on either half

Phenom Mini

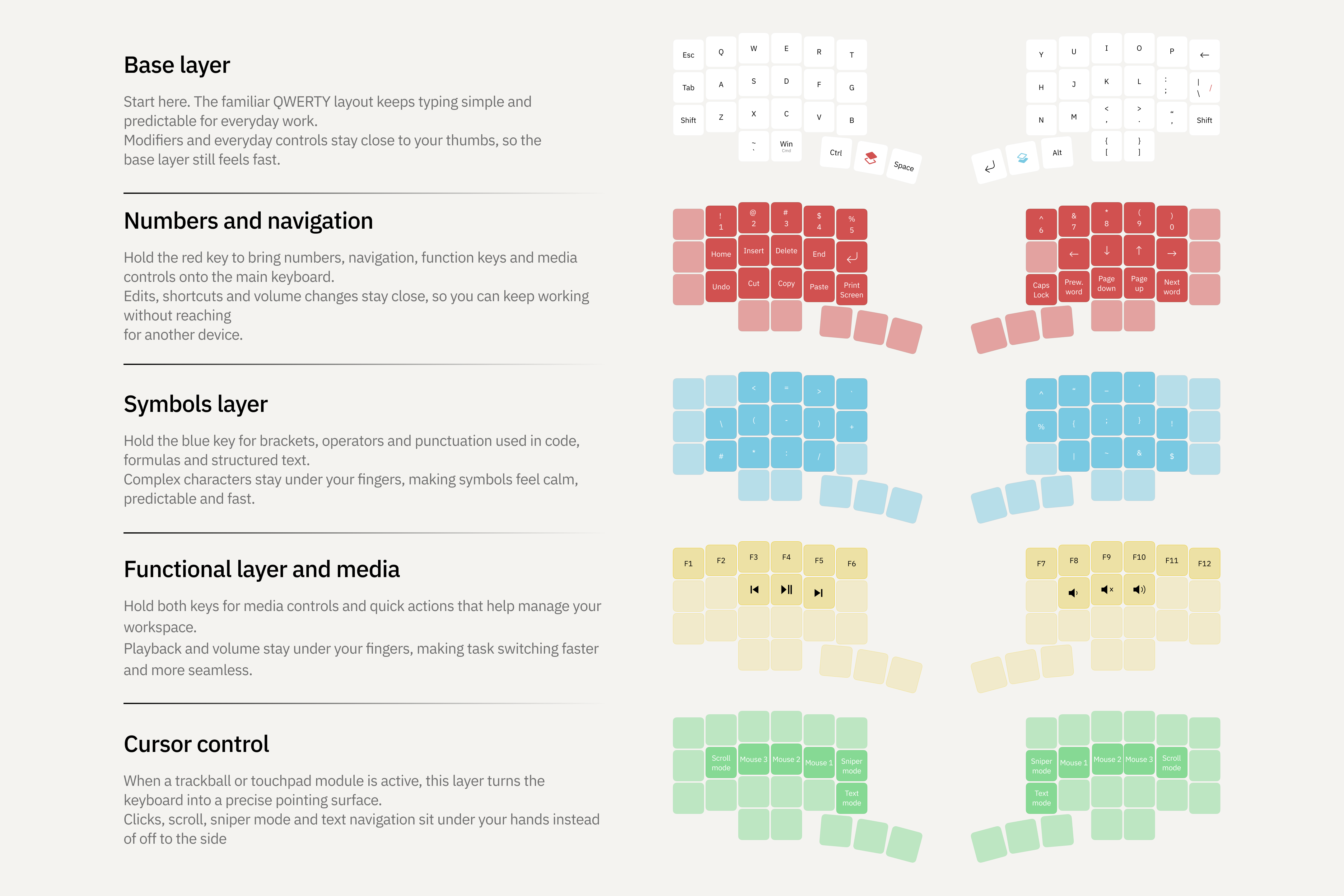

Phenom Mini layout

Phenom Mini is a compact version of the ergonomic Phenom split keyboard with 46 customizable keys and support for a trackball, touchpad, or encoder on either half

Phenom Micro

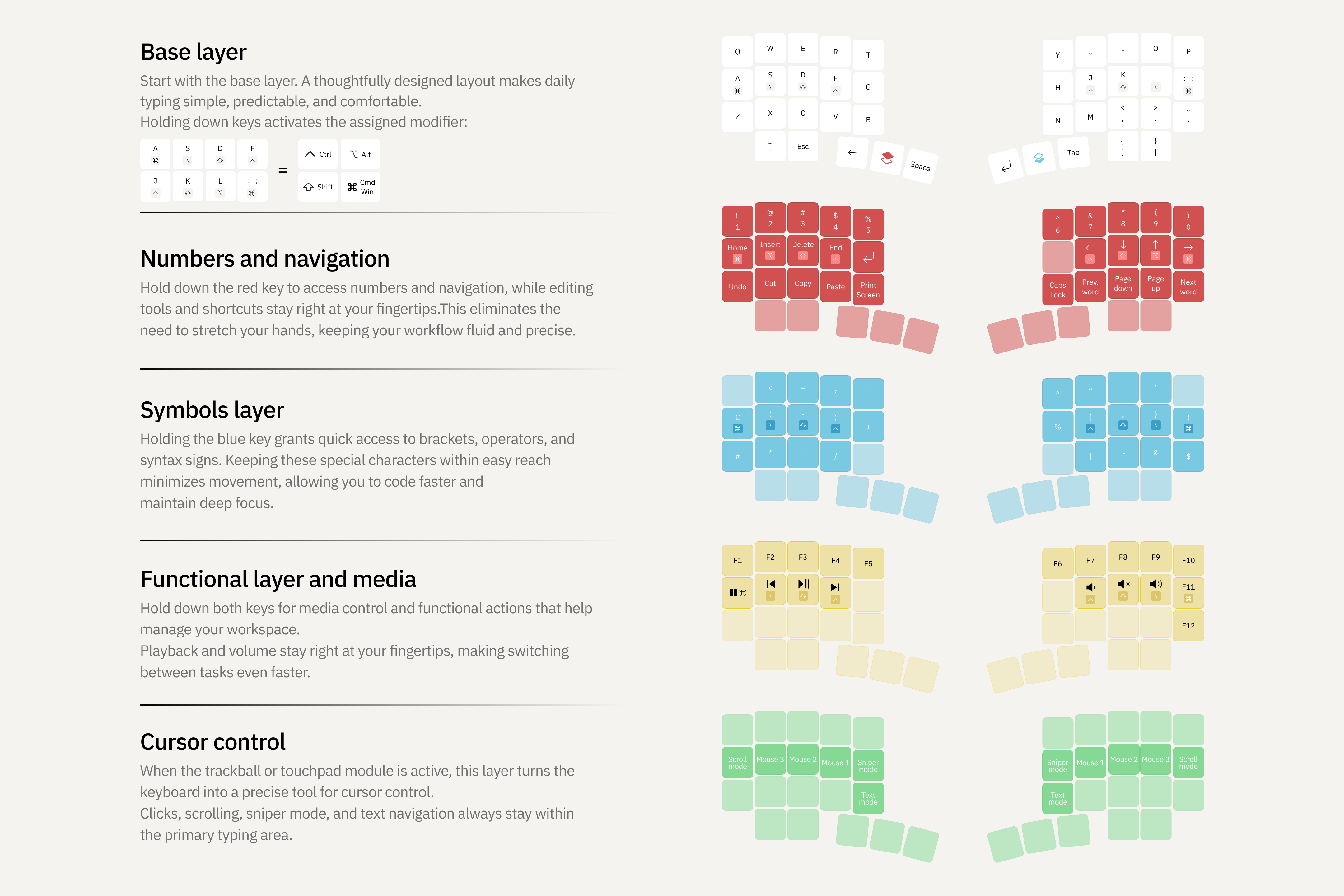

Phenom Micro layout

Phenom Micro is an ultra-compact version of the Phenom keyboard, with only 40 customizable keys and support for a trackball, touchpad, or encoder on either half

Overview

Phenom overview

  1. RESET button
  2. BOOT button
  3. hot-swap socket for connecting modules
  4. case cover plug for using the keyboard without modules
  5. side USB-C connector for connecting the halves to each other
  6. interface USB-C connector for connecting to a computer

Connection

  • Phenom works with devices running Windows, macOS/iOS, and Linux/Android
  • The keyboard uses Plug and Play (PnP), so no additional driver installation is required
  • The keyboard ships ready to use with the firmware current at the time of purchase
  • Before connecting the keyboard to a computer, make sure the USB-C cable between the halves is firmly inserted
  • When connecting the keyboard to a computer, make sure the USB-C cable is firmly inserted into the keyboard’s interface connector
The keyboard can be connected to a computer through either half

Modules

Phenom supports a modular system for both halves of the keyboard

  • Ball size: 38 mm
  • Scroll Mode for smooth scrolling
  • Sniper Mode for precise cursor control
  • Text for convenient text navigation

Modular system connection features

  • modules support hot swapping
  • modules can be installed in the connectors on either half without reflashing
  • when replacing one module with another, the configuration is preserved
  • identical modules can be used on both halves
  • if no module is installed, the connector is covered with a neat plug
  • each module is configured separately, and the active layer is shown by indicator lighting

Configuration

To remap keys and configure the keyboard, use the graphical configurator Entropy

Firmware Reflashing/Update

Preparation:

  • Download the latest firmware version here
  • Save your layout in the Entropy by opening the “Layout” menu, then selecting “Export layout”

Installation

To reflash/update the firmware, the keyboard must be put into bootloader mode. This can be done in several ways. Choose one:

  1. Using the RESET button:

    • Connect the USB power cable and quickly press the RESET button twice on the bottom of the keyboard
    • Wait until the controller enters bootloader mode and the storage folder opens

  2. Using the BOOT button:

    • Hold the BOOT button on the bottom of the keyboard and connect the USB power cable
    • Wait until the controller enters bootloader mode and the storage folder opens
  • Copy or drag and drop the UF2 file, after which the controller should immediately reboot and start working in normal mode
  • Import the layout in the Entropy by opening the “Layout” menu, then selecting “Import layout”

Care and Maintenance

  • Periodically clean dust and dirt from the case with a dry or slightly damp cloth
  • For the trackball module: keep the ball, ceramic bearings, and ball cavity clean
To remove the ball, pull it in the opposite direction from the trackball base
Do not use aggressive cleaning agents (acetone, gasoline, solvents (646, white spirit), concentrated acids, or alkalis)!
Do not allow liquid to enter the device!

Support

The keyboard comes with a 3-year warranty and service support.

If you have any questions about setup, firmware, or operation, please contact the Ergohaven Telegram group or knowledge base
